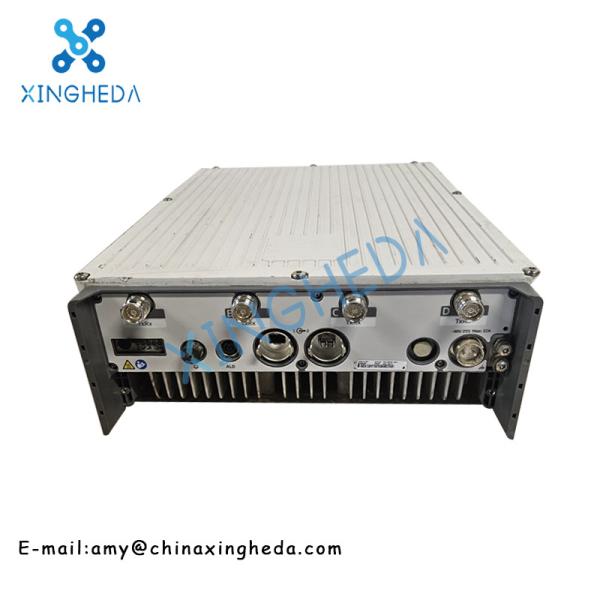

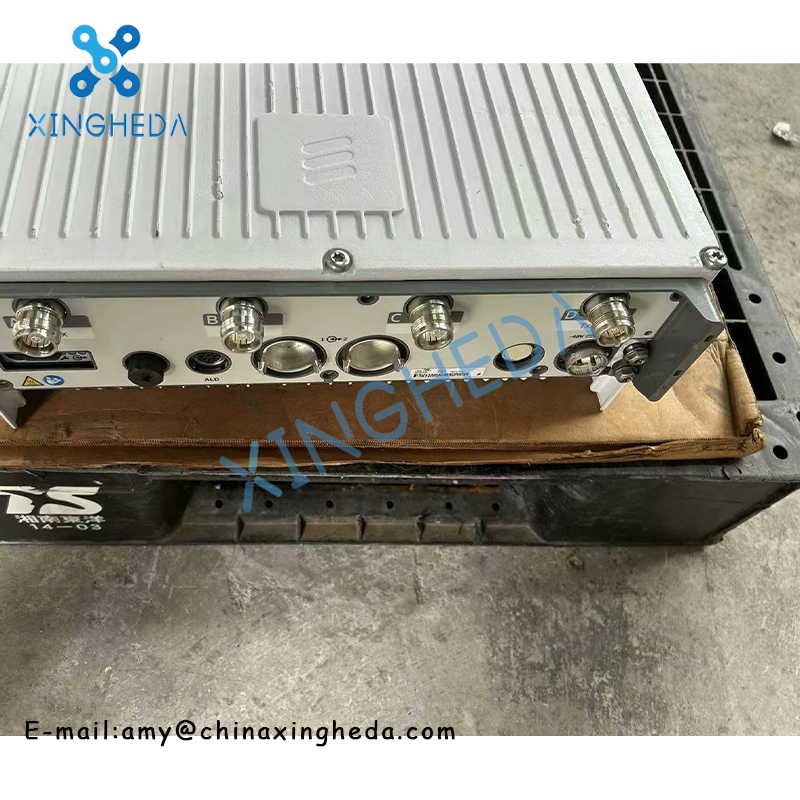

Ericsson Radio 4499 B1B3 KRC161 787/1

Product Description:

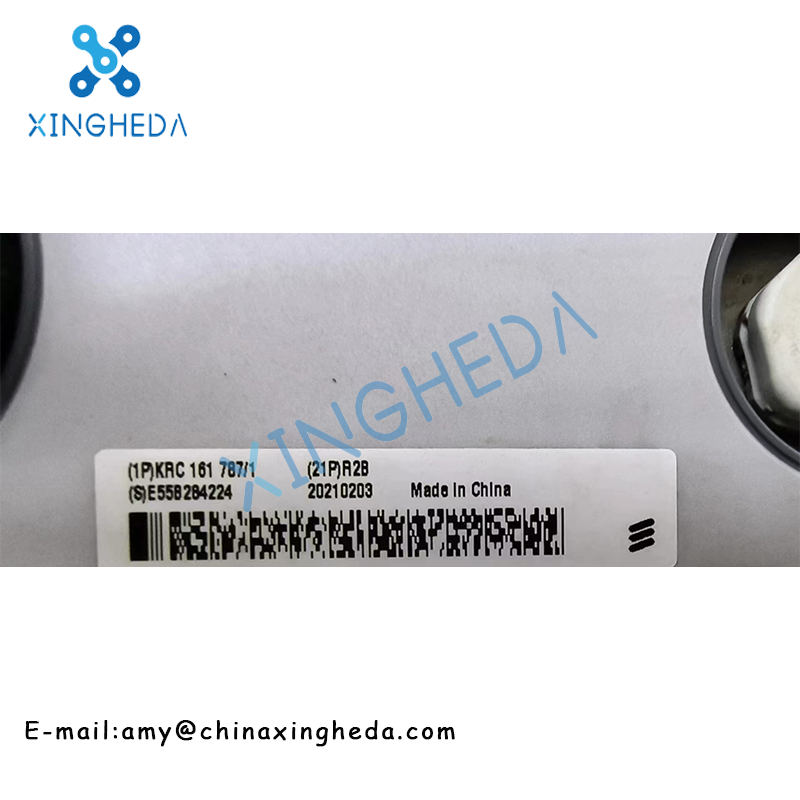

• Model: KRC161 787/1

• Product Name: Radio 4499 B1B3

• Type: Multiband 4T/4R radio

Technical Specifications:

• Frequency Bands: 3GPP FDD band combinations of B1 + B3, B1 + B7, or B3 + B7.

• Hardware Capacity

  • GSM: Up to 12 carriers in mixed - mode.

  • WCDMA: Up to 12 carriers.

  • LTE: Up to 6 carriers in MIMO.

  • IBW: Up to 75 MHz in B3, 60 MHz in B1, 70 MHz in B7; 20 MHz for GSM and LTE 1.4, 3, 5, 10, 15, 20 MHz carriers.

• Output Power: Up to 4 x 80 W.

• Interface Specifications

  • Antenna Ports: 4 x 4.3 - 10 (F), 50 Ω.

  • External Antenna Line Device: RET 2.0, AISG TMA & RET support via RS - 485.

  • CPRI: 2 x 2.5/4.9/9.8/10.1 Gbps (exchangeable SFP modules).

  • Optical Indicators: 5.

  • Maintenance Button: 1.

  • External Alarms: 2 (using DIN 14).

  • Field Ground: Dual lug, 2 x M6 bolt.

• Mechanical Specifications

  • Weight: 30 kg.

  • Volume: 27 liters.

  • Mounting: Rail, wall, and pole mount. Fans are needed when mounted in a non - vertical direction.

• Electrical Specifications: Power supply is - 48 VDC (2 - wire or 3 - wire).

• Environmental Specifications

  • Normal Operating Temperature: - 40 °C to +55 °C (cold start at - 40 °C).

  • Environment: Outdoor class with IP65.
