ELTEK Flatpack S 48V/1800W HE 241122.125 Rectifier Module

Brand Name : ELTEK

Model Number : Flatpack S 48V/1800W HE

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : power module

Products status : Stock

Product name : 241122.125

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

ELTEK Flatpack S 48V/1800W HE 241122.125 rectifier module

Product Description:

ELTEK Flatpack S HE 48V/1000W rectifier module is used in the 1U high, 2 or 3 rectifier positions power rack with Smartpack S controller and battery and load distributions, the Flatpack S rectifiers cover 2 to 5.4kW applications using a minimum of space, less than 6 liters, and low heat dissipation.

Model48/1000 HE48/1800 HE
Part number241122.105241122.125
INPUT DATA
Voltage (nominal)185 - 250 VAC / 185 - 250 VDC 1)195 - 277 VAC / 195 - 250 VDC 1)
Voltage (operating range)85 - 300 VAC / 85 - 250 VDC 1)85 - 305 VAC / 85 - 250 VDC 1)
Current (maximum) @ nominal input, full load5.9 ARMS9.9 ARMS
Frequency45 - 66 Hz / 15 - 18.5 Hz2) / 0 Hz1)45 - 66 Hz / 0 Hz1)
Power Factor> 0.99 at 50% load or more
ProtectionFuse in L & N, Varistor, Shutdown when input voltage is out of operating range
OUTPUT DATA
Voltage (default)53.5 VDC
Voltage (adjustable range)43.5 - 57.6 VDC
Power (maximum) @ nominal input1000 W1800 W
Power @ 85 VAC420 W700 W2)
Current (maximum) @ nominal input20.9 A (@VOUT < 48VDC)37.5 A (@VOUT < 48VDC)
Hold up time, maximum output power>20ms; output voltage > 41 VDC>10ms; output voltage > 42 VDC
Current sharing (10 - 100% load)±5% of maximum current from 10 to 100% load
Static Voltage regulation (10 - 100% load)±0.5%
Dynamic Voltage regulation±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms
Ripple< 150 mVPP , 30 MHz bandwidth
ProtectionORing FET, Short circuit proof, High temperature protection, Over voltage Shutdown
OTHER SPECIFICATIONS
Efficiency95.5 %96 %
Isolation4.0 kVDC - input to output, 2.5 kVDC - input to earth, 710 VDC - output to earth5.0 kVDC - input to output, 2.5 kVDC - input to earth, 710 VDC - output to earth


Alarms: Red LED

Low / high input voltage shutdown, High / low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low output voltage alarm, CAN bus failure
Warnings: Yellow LEDRectifier in power de-rate mode, Remote output current limit activated, Input voltage out of range, flashing at overvoltage, Loss of CAN communication with controller
Normal operation: Green LED
MTBF (Telcordia SR-332 Iss.I method III (a))>315 000 (@ Tambient : 25 °C)>300 000 (@ Tambient : 25 °C)
Operating temp. (5-95% RH n.cond. hum.)-40 to + 85°C [-40 to +185°F]-40 to + 85°C [-40 to +185°F]
Max output power de-rates above temp / to45°C [113°F] / 600W @ 85°C[185°F]55°C [113°F] / 1000W @ 85°C[185°F]
Storage temperature-40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing
Altitude2000m (~6500ft)4000m (~13000ft)
Dimensions[WxHxD] / Weight72 x 41.5 x 217mm (2.83 x 1.63 x 8.54”) / < 850 g (1.9 lbs)
DESIGN STANDARDS
Electrical safety

EN 62368-1:2020+A11:2020, IEC 62368-1:2018, UL 62368-1:2019

IEC 60950-1:2013


EMC

EN 61000-6-1:2019, -6-2:2019, - 6-3:2007 + A1:2011, - 6-4:2019

IEC 61000-6-5:2015+Cor1:2017, EN 50121 -4:2016/A1:2019, -5:2017/A1:2019 ETSI EN 300 386 V.2.1.1, FCC CFR47 part 15B:2020 (parts of)

MarineDNVGL-CG-03393)


Environment

ETSI EN 300 019: 2-1 (Class 1.2) & 2-2 (Class 2.3)

Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised

EU 2015/863 (RoHS), 2012/19/EU (WEEE), IEC 63000:2018

Product Details:

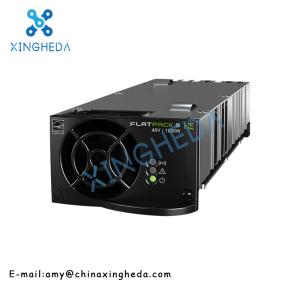

ELTEK Flatpack S 48V/1800W HE 241122.125 Rectifier Module

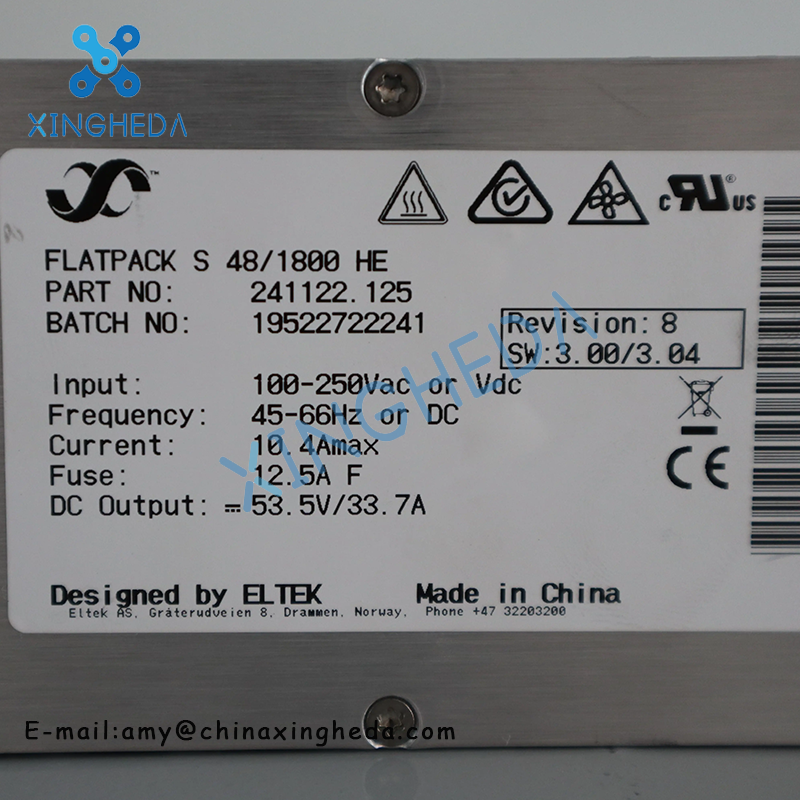

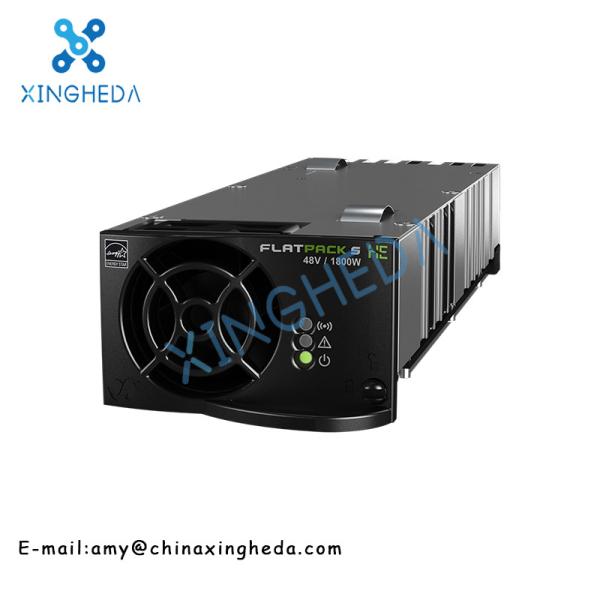

ELTEK Flatpack S 48V/1800W HE 241122.125 Rectifier Module
If you are interested, please let us know the specific model. We will provide the best service and the best price!
