ELTEK Flatpack2 48v/2000w SHE 241115.106 Rectifier Module

Brand Name : ELTEK

Model Number : Flatpack2 48v/2000w SHE

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : power module

Products status : Stock

Product name : 241115.106

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

ELTEK Flatpack2 48v/2000w SHE 241115.106 rectifier module

Product Description:

The Flatpack2 2000/48 Super HE is fully compatible with Flatpack2 and Flatpack2 HE systems and can replace any 2kW Flatpack2 module.

Model 48/2000 SHE 48/3000 SHE
Part number 241115.106 241119.106
INPUT DATA
Voltage (nominal range) 185 - 264 VAC 206 - 264 VAC
Voltage (operating range) 85 - 264 VAC
Frequency 45 - 66 Hz
Maximum current 11.6 ARMS 16 ARMS
Protection Fuse in Live, varistor for transient protection, shutdown when VIN is out of range
OUTPUT DATA
Voltage (default) 53.5 VDC
Voltage (adjustable range) 43.21) - 57.6 VDC
Max power, nominal input 2000 W 3000 W
Max power, de-rated @VIN = 85 VAC 850 W 1000 W
Max current, @VOUT = 48 VDC 41.7 A 62.5 A
Current sharing ±5.0% of max current
Static voltage regulation (10-100% load) ±0.5%
Dynamic voltage regulation ±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms
Hold up time, @100% load >10ms; output voltage > 42 VDC
Ripple <150 mVPP , 30 MHz bandwidth

Protection

Overvoltage shutdown, short circuit proof, high temperature, hot plug-in inrush current limiting, fuse
OTHER SPECIFICATIONS
Peak Efficiency 97.8 %

Isolation

3.0 kVAC – input to output

1.5 kVAC – input to protective earth

0.5 kVDC – output to protective earth

Alarms (Red LED)

Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure

Warnings (Yellow LED)

Rectifier in power derate mode, Remote current limit activated, Input voltage out of range, flashing at overvoltage
Normal (Green LED) Input and output ok
MTBF (Telcordia SR-332 Iss.3 method II Case L1) 1 900 000 hours
Altitude Up to 4000m
Operating temperature (5 - 95% RH non-cond.) -40 - 75°C [-40 - 167°F ]
Max output power de-rates above temp / to 45°C [+113°F] / 1350 W 45°C [+113°F] / 1800 W 2)
Storage temperature -40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing
Dimensions[WxHxD] / Weight 109 x 41.0 x 327mm [4.25 x 1.61 x 13”] / 2.050 kg [4.5lbs]
DESIGN STANDARDS
Electrical safety EN 62368-1:2020+A11:2020, IEC 62368-1:2018, UL 62368-1:2019

EMC

EN 61000-6-1:2019, -6-2:2019, -6-3:2007+A1:2011+A2:2012+AC:2012, -6-4:2019

ETSI EN 300 386 V.2.2.0:2020, FCC CFR 47 Part 15:2020

Environment

ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Parts of Class 3.23)) EU 2015/863 (RoHS) & 2012/19/EU (WEEE)

Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040-5-3:2016 clause 4.3, must be advised

Product Details:

ELTEK Flatpack2 48v/2000w SHE 241115.106 Rectifier Module

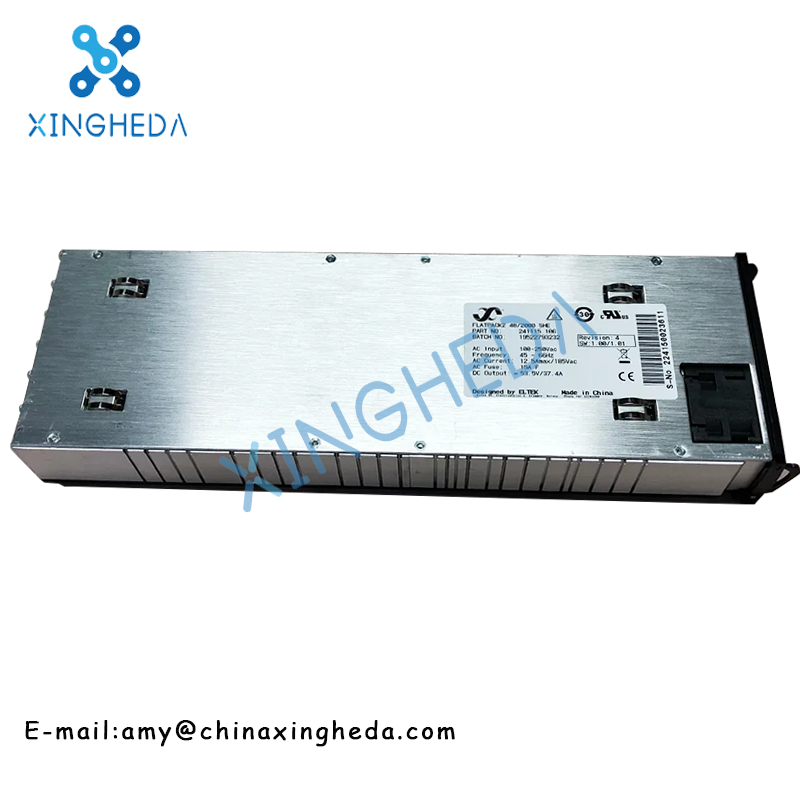

ELTEK Flatpack2 48v/2000w SHE 241115.106 Rectifier Module


If you are interested, please let us know the specific model. We will provide the best service and the best price!
